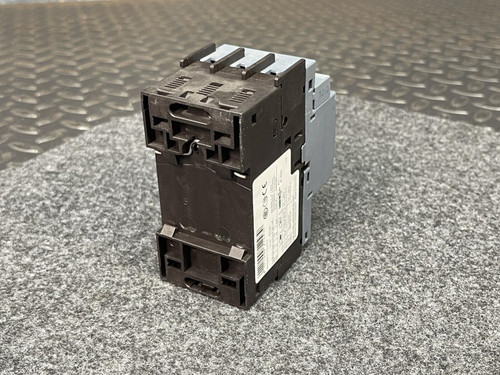

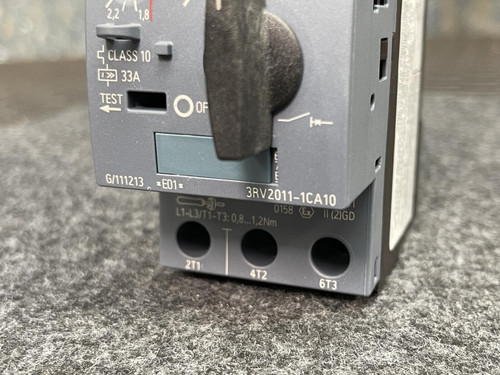

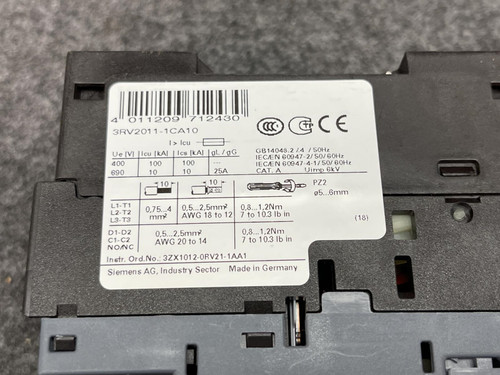

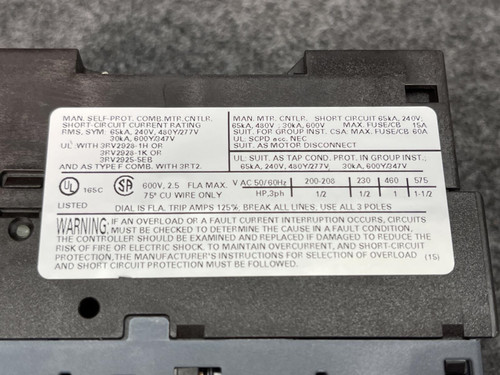

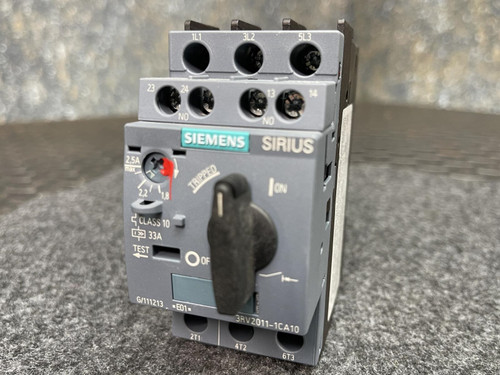

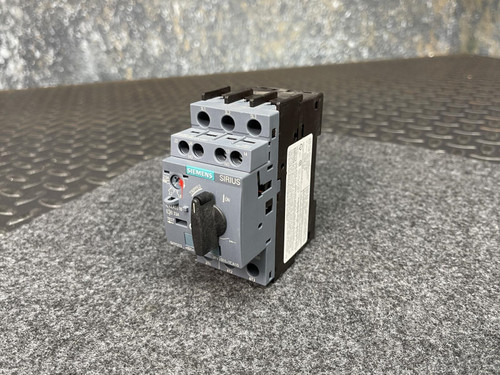

Used Siemens Sirius 3RV2011-1CA10 Motor Starter Protector
Condition:
This unit is used, clean and in excellent cosmetic condition, showing minimal signs of use. It was removed from a functional system and is expected to operate properly.
Here’s what you should know about it:
The Siemens Sirius 3RV2011-1CA10 is a compact circuit breaker designed for motor protection. It offers reliable overload and short-circuit protection, ensuring the safety and longevity of your electrical systems.
Key Features
- Motor Protection: Thermal overload and magnetic short-circuit protection for motors.
- Adjustable Overload Release: Current setting range from 1.8 to 2.5 A.
- High Breaking Capacity: Up to 100 kA at 400 V AC.
- Compact Design: Size S00, suitable for space-constrained installations.
- Flexible Mounting: Screw and snap-on mounting onto 35 mm DIN rails.
Technical Specifications
| Attribute | Specification |
|---|---|
| Product Brand | SIRIUS |
| Product Designation | Circuit breaker |
| Size | S00 |
| Trip Class | CLASS 10 |
| Overload Release Range | 1.8 to 2.5 A |
| Short-Circuit Release | 33 A |
| Rated Operational Voltage | Up to 690 V AC |
| Breaking Capacity | 100 kA at 400 V AC |
| Mounting | Screw and snap-on for 35 mm DIN rail |
| Dimensions (H x W x D) | 97 mm x 45 mm x 97 mm |
| Weight | 0.345 kg |
Applications
Ideal for protecting motors in industrial and commercial settings, the 3RV2011-1CA10 ensures reliable operation and safeguards against electrical faults.
Compliance and Certifications
- CE Marked
- UL Listed
- CSA Certified
- RoHS Compliant
Specifications
- Weight: 4 lb
- Width: 6 in
- Depth: 6 in
- Height: 6 in
