Product Description
New / Unused

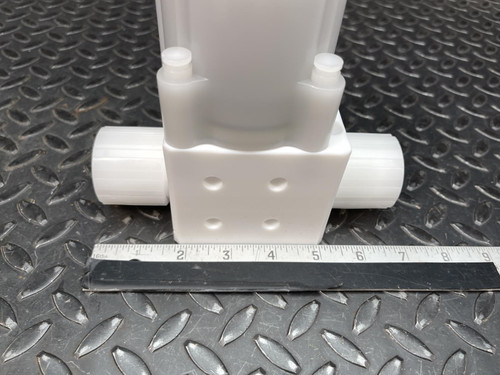

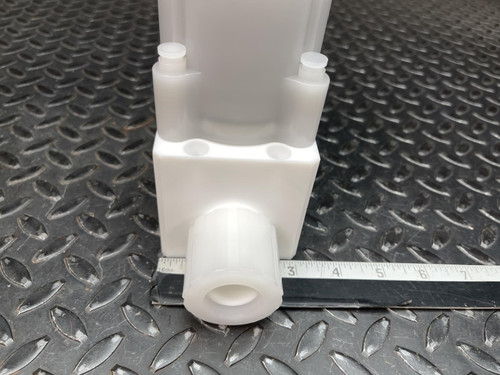

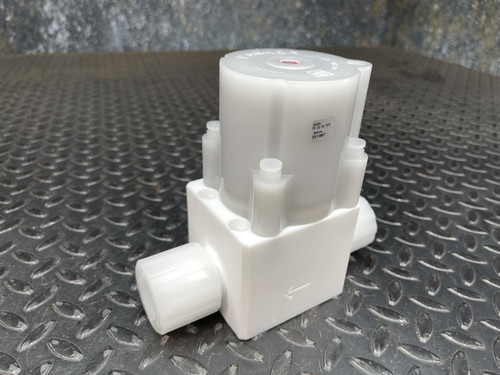

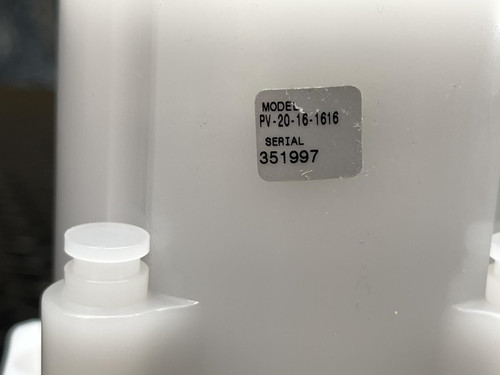

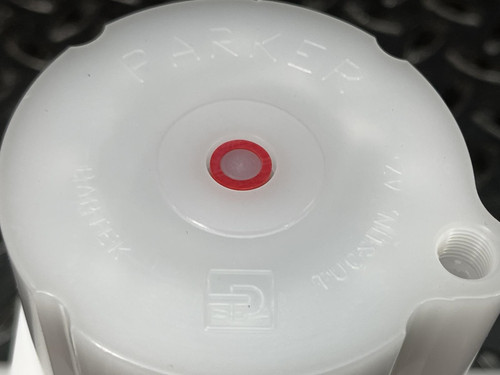

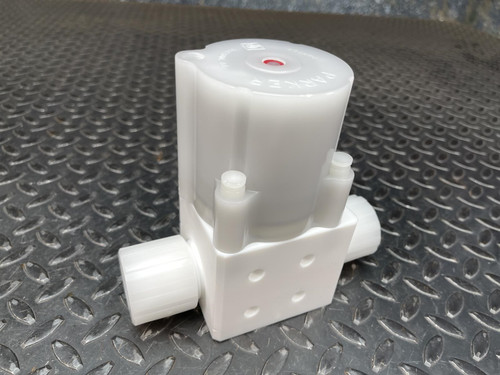

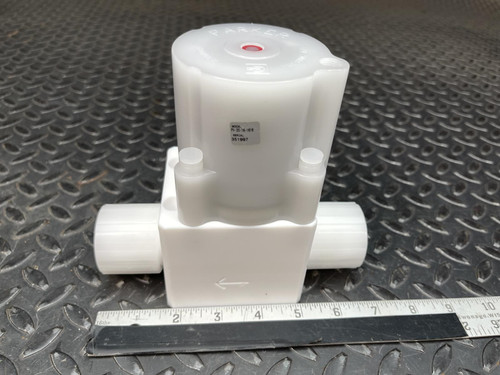

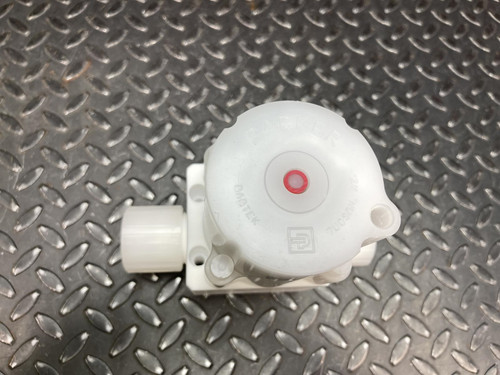

Parker PV-20-16-1616, UHP PTFE Air-operated Slurry Valve.
Free shipping to the 48 contiguous states in the USA.
Port Connection 1 (inch): 1″ Parflare
Nut Material: PVDF
Body Size (inch): 1″
Actuation: Normally Closed
Wetted Material: PTFE, Modified PTFE
Non-Wetted Material: PVDF, Viton, PTFE Coated SS Spring
Pressure Rating: 27″ HG vacuum (913 mbar) – 80 psig (5.5 bar) (1/4″ Orifice) 27″ HG vacuum (913 nbar) – 100 psig (7 bar) (1/2″ Orifice) (1″ Orifice)
Actuation Pressure: 60 psig (4.1 bar) – 80 psig (5.5 bar)
Maximum Ambient Temperature: 66 °C, 150 °F
Minimum Ambient Temperature: -17 °C, 0 °F
Maximum Fluid Temperature: 130 °C, 266 °F
Minimum Fluid Temperature: -17 °C, 0 °F
Port 2 Size: 1″ Parflare inch
Flow Rate: Cv 10.9 Cv
Flow Coefficient: Kv 155.4 L/mi
Specifications
- Weight: 7 lb
- Width: 10 in
- Depth: 6 in
- Height: 8 in
